Arra N5200-2Z C-band Splitter

$215.00

Description

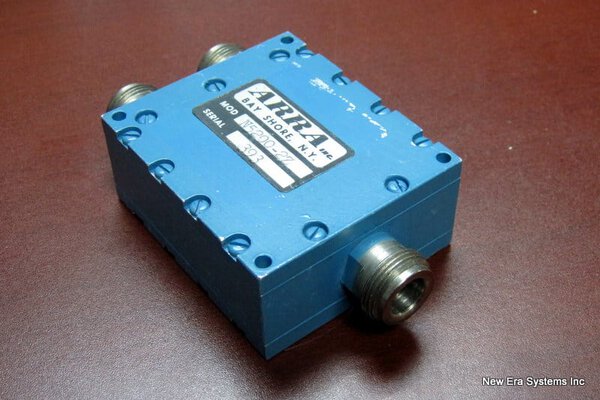

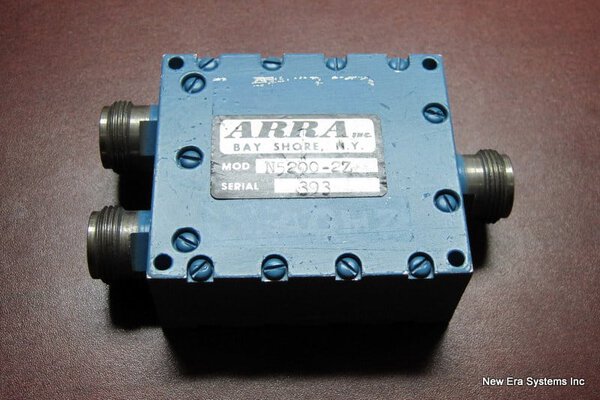

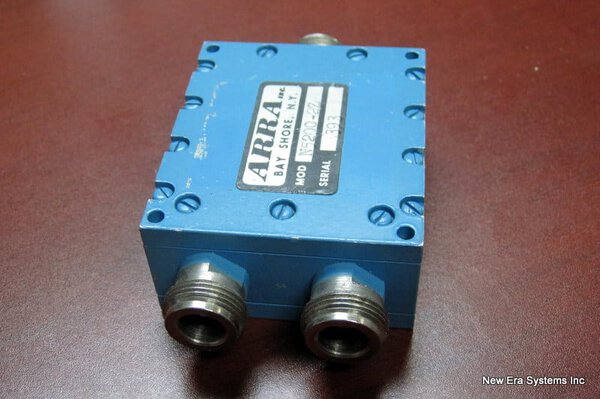

Arra N5200-2Z C-band Splitter

Arra N5200-2Z C-band Splitter is a used two port splitter/combiner designed to pass high power RF signals in the frequency range of 5.7 to 6.5 GHz. Peak handling is 1 kW with aver load of 20 watts. Press the inquiry button above to contact us about purchase and shipment of this splitter. Looking for other VSAT connectors like this one? View our larger inventory of cables & connectors on our website here.

GENERAL SPECIFICATIONS
Frequency Bands 0.005 to 18.0 GHz
RF Power* 20 Watts average, 1 kW peak
(Load VSWR 1.3)
Connectors Type N Female
Material:
Body Aluminum
Connectors MIL-C-39012
Finish ARRA Blue per MIL-C-22750

Arra N5200-2Z C-band Splitter

Additional information

Weight8 oz
