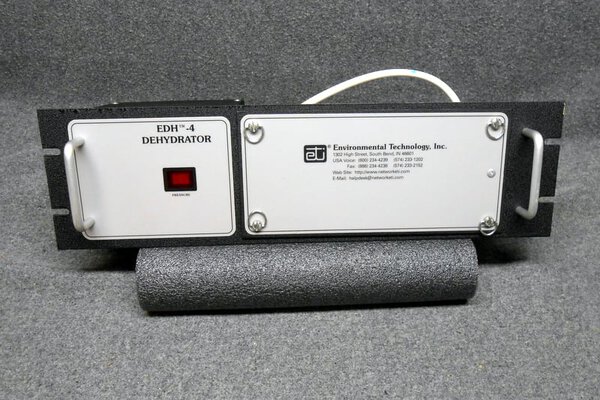

ENVIRONMENTAL TECHNOLOGY EDH-4 DEHYDRATOR
Description
EDH-4 DEHYDRATOR
The EDH-4 DEHYDRATOR answers the need for a low cost manually regenerated dehydrator for pressurizing small volume waveguide and coax. It is especially well suited for Ku and Ka band applications
The discharge pressure is 0.5 psig with a maximum flow rate of 6.0 scfh with a typical dew point below -40° C. The EDH–4 indicates pressure and status on a bright red LED display. A microcontroller regulates pressure and controls all dehydrator functions. Solid state control of all functions insures reliability.

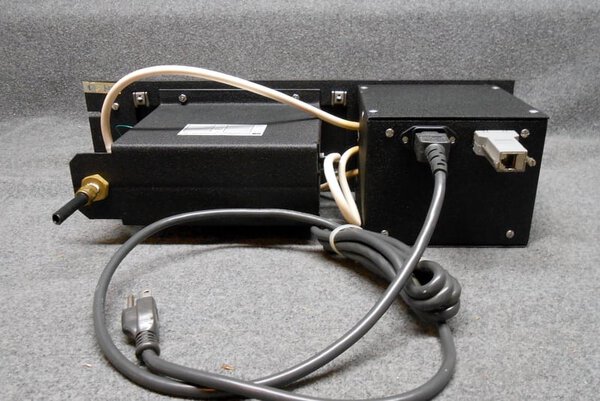

The desiccant container is conveniently replaceable from the front, without removing the dehydrator from its rack. Modular subsystems eliminate the need for special tools and test equipment should repairs ever be required. The dehydrator limits continuous air pump operation to four hours in the event of a severe leak.

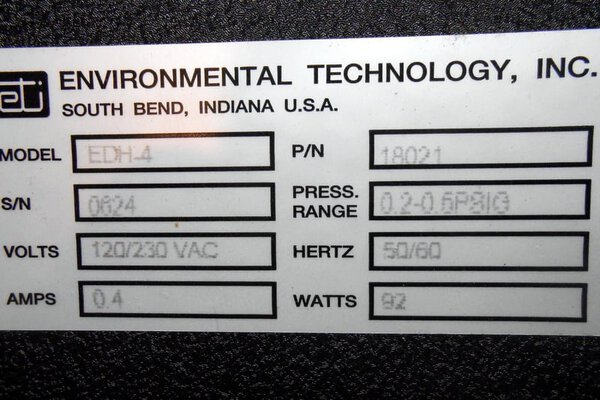

CE, 120/230 volt 50/60 Hz 24 va (maximum) operation and selectable English or SI calibration ideally suit the EDH–4 for global applications. A variety of mounting configurations combined with a -40° to 60°C operating temperature range provide location flexibility.
