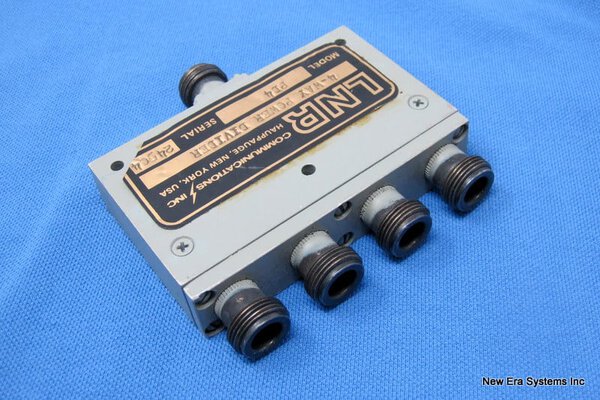

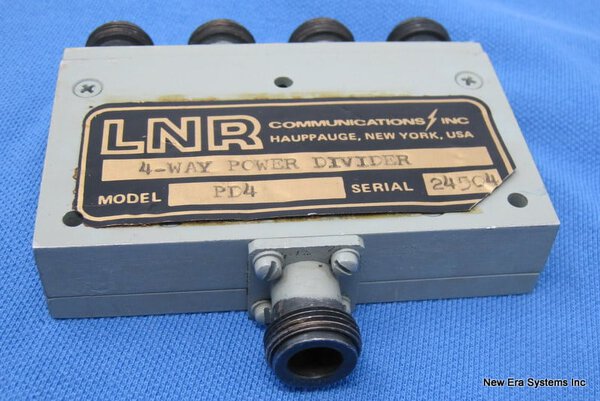

LNR PT4 4-Way Power Divider

$125.00

5 in stock

Description

LNR PT4 4-Way Power Divider most often used for C-Band. All of the connectors are Type N female. Eight Port Splitter Combiner is used widely in the satellite industry splitting or combining RF signals in the range of 8 GHz to 12GHz

Fequency Rand: 0.5-2.5 GHz
Isolation: 20dB Min.
VSWR In / Out: 1.40:1/1.25:1 Max.
Insertion Loss: 0.7dB
Max Amplitude Balance: +0.30dB Max.
Phase Balance: +4 Deg. Max.
Power: 30 Watts

We have more splitters, combiners, BUC’s, amplifiers, antennas and other VSAT equipment here!

LNR PT4 4-Way Power Divider

The typical frequency range is 3.7 to 4.2 GHz ideally suited to work with C-Band LNAs

Additional information

Weight6 oz
